Swing Solenoids

DSB-01-Swing solenoid (Solenoid Valve︱Solenoid pump︱Electromagnets)

1. Feature:

1) Pendulum rod up to 80 degrees

2) Torque up to 16g

3) Axial movement

2. Minimum operating voltage: DC3V

3. Withstanding voltage: between the coil and the framework AC1200 (50/60HZ) I seconds (5mA)

4. Temperature rise limit: Under voltage DC6V, the temperature rise less than 80 ℃

5. Service life: 2.8 million times (Power-on for 1 second, Power-off for 2 seconds)

6. Advantage:

1) Responsive, reliable

2) Low power consumption

3) Large swing angle

7. Main purpose:

The Swing Solenoid is mainly used in coin machines, vending machines, ticket vending machines, automatic sorting machines, coin-operated channel control system.

Instructions:

The Solenoid&Electromagnet is a non-standard component, 100% ODM or OEM is welcome too, just feel free to contact us.

The more you tell us, the best we can do.

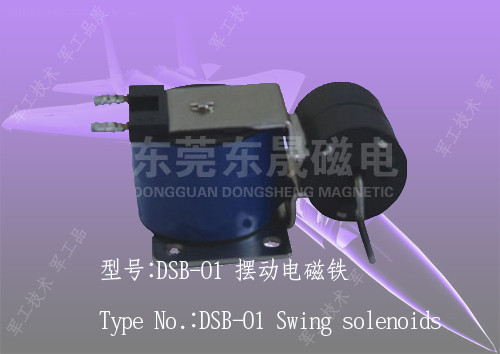

Swing Solenoids Images
